35mm Concealed Hinge Drilling Locator Kit for Door Cabinet Installation

FEATURES

PRECISE DRILLING EVERY TIME - The adjustable dial can adjust the distance with 3mm, 4mm, 5mm, and 6mm hinge offsets, which is very accurate and makes the measurement a breeze.

QUICK-SETUP DESIGN - It's a DIY woodworking tool, easy to use, suitable for your own home operation, and does not need professionals. The intuitive design reduces setup time by 50%, letting you focus on the job.

DURABLE ALL-METAL CONSTRUCTION - Built to last with high-grade aluminum alloy, this kit withstands heavy use without bending or warping. Unlike plastic alternatives, it maintains precision over hundreds of installations, ensuring long-term reliability.

VERSATILE COMPATIBILITY - Works with most standard 35mm concealed hinges, making it perfect for kitchen cabinets, wardrobes, and furniture projects. The included 2mm drill bit and bearing ensure clean pilot holes for screw placement.

COMPLETE KIT READY-TO-USE - Get everything you need in one package, no extra purchases required—start your project immediately with professional-grade results.

HOW TO USE

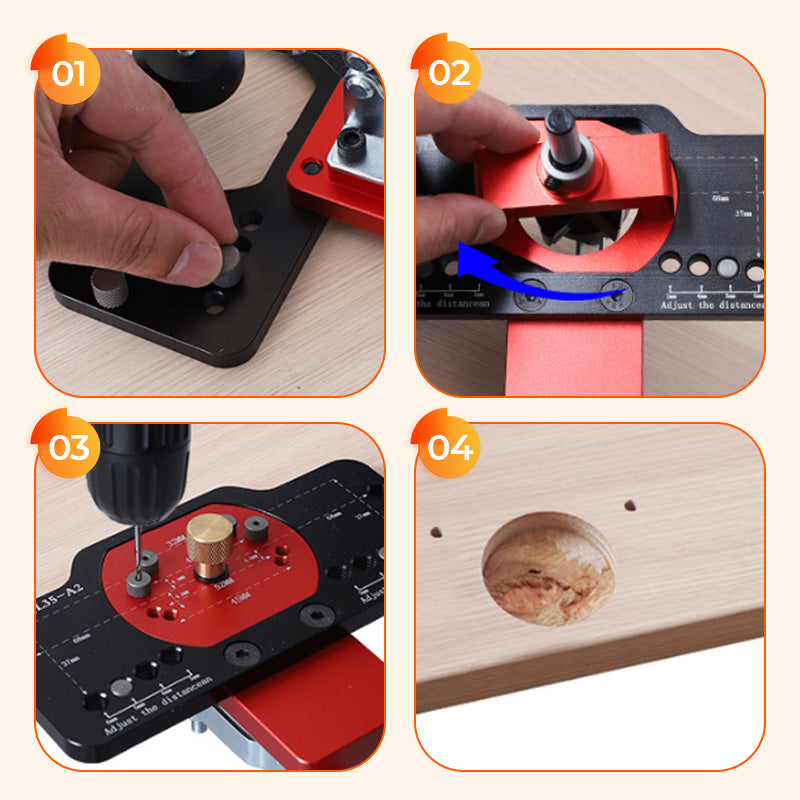

Step 1. Install a 35mm hole opener, adjust the drilling depth to 12-13mm, and then lock the limit ring.

Step 2. Adjust the fixed size of the fast clip black pressing block (Note: the size of the tool adjustable fixed board is 15-25mm).

Step 3. Move the puncher to the marking and drilling position of the board, and lock the quick clamp.

Step 4. Tighten the handle of the drill, press down the hole to the depth of 12-13mm at a constant speed, and then drill 2mm screw holes on the left and right sides.

SPEC

Material: Aluminum Alloy

PACKAGE INCLUDES

1 * Hinge Boring Hole Drill Guide Body

2 * Drilling Guide Locators

1 * 35mm Hole Opener

1 * 2mm Drill Bit

2 * Wrenches

1 * Bearing

NOTES

Check size chart before ordering to ensure the best fit.

Colors may vary slightly due to screen settings.

Store in a dry place to prevent corrosion.
